EUAL Desk Cabinets
vertical decomposability, on an E NUX base

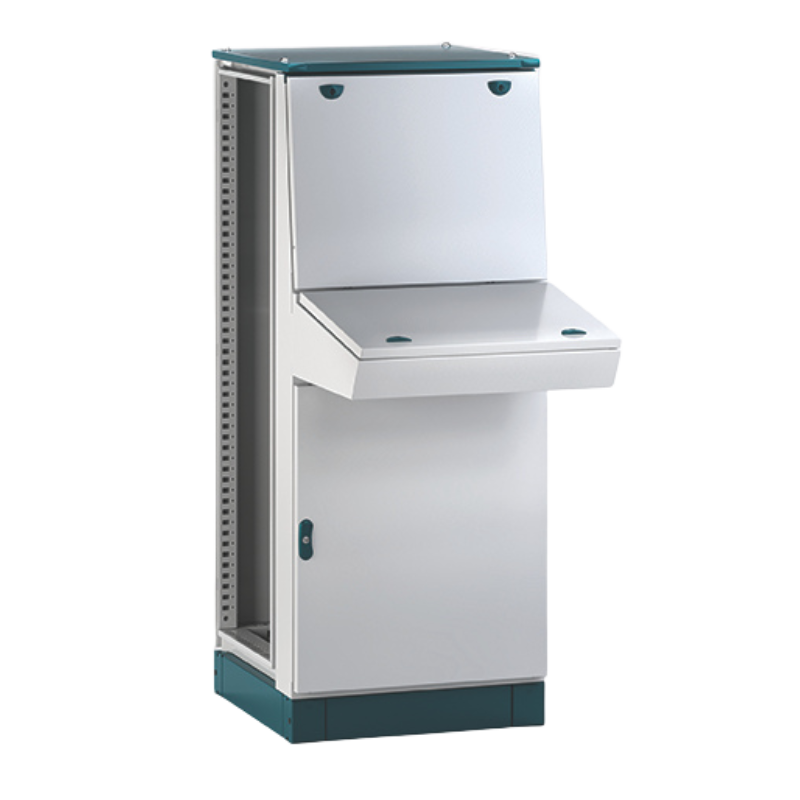

E NUX base cabinets are a solution that combines the typical modularity of the E NUX cabinet with the concept of vertical decomposability. They play a crucial role in ensuring smooth and continuous interaction between man and machine in various industrial environments.
Available in an assembled or kit version, they feature a bottom and top door and an intermediate zone, prepared for the mounting of a panel or front shelf.
A front frame is added to the E NUX structure, with a low height of 1400 mm for good visual control of the area to be guarded.
Solution available in 4 widths and 2 depths and in versions:
- Upper and lower door + rear panel
- Upper and lower door + rear door
Compatibility with the standard accessories of the E NUX modular system.
Technical features
Material
- Structure: HSLA high-strength low alloy steel sheet (E NUX structure)
- Rear panel, roof, frame, roof extension: Sheet steel DC01
- EUAL front: DC01 sheet steel with sendzimir profiles
Painting: Standard electrostatic E DUP cycle - liquid paintwork by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.
Colour:
- Structure: RAL7035 smooth
- Front EUAL, door/back panel: Textured RAL7035
- Roof: RAL5020 textured
Sealing gasket: Adhesive
Degree of protection: IP55, NEMA/UL Type 1
Impact resistance degree: IK10
Supply
Cabinet supplied with:
- E NUX structure with rear door (or panel)
- EUAL front complete with upper and lower door
- Removable roof
- Upper door with Sendzimir profiles, mechanical stop on opening, and double flap closing system diam. 3.0mm
- Lower door with reinforcement profiles and double-finned latch diam. 3.0 mm
- Adhesive gasket and mounting accessories
To complete the front configuration order separately:
- EUME shelf or
- EUPN front panel
EUAL Control Desk
Code List
Filter by:
| Item # | Configuration | Height | Width | Depth | Environmental ratings | Add to Quote Cart |
|---|---|---|---|---|---|---|
| AE123 | Console base | 770 | 1200 | 400 | NEMA / UL Type 1, 12; IP55 | |
| AE1235 | Console base | 770 | 1200 | 500 | NEMA / UL Type 1, 12; IP55 | |
| AE164 | Console base | 770 | 1600 | 400 | NEMA / UL Type 1, 12; IP55 | |
| AE1645 | Console base | 770 | 1600 | 500 | NEMA / UL Type 1, 12; IP55 | |
| AE601 | Console base | 770 | 600 | 400 | NEMA / UL Type 1, 12; IP55 | |
| AE802 | Console base | 770 | 800 | 400 | NEMA / UL Type 1, 12; IP55 | |
| AE8025 | Console base | 770 | 800 | 500 | NEMA / UL Type 1, 12; IP55 | |
| LE123 | Top desk | 200 | 1200 | 835 | NEMA / UL Type 1, 12; IP55 | |
| LE1235 | Top desk | 200 | 1200 | 935 | NEMA / UL Type 1, 12; IP55 | |
| LE164 | Top desk | 200 | 1600 | 835 | NEMA / UL Type 1, 12; IP55 | |
| LE1645 | Top desk | 200 | 1600 | 935 | NEMA / UL Type 1, 12; IP55 | |
| LE601 | Top desk | 200 | 600 | 835 | NEMA / UL Type 1, 12; IP55 | |
| LE802 | Top desk | 200 | 800 | 835 | NEMA / UL Type 1, 12; IP55 | |
| LE8025 | Top desk | 200 | 800 | 835 | NEMA / UL Type 1, 12; IP55 | |
| ME123 | Top desk | 300 | 1200 | 650 | NEMA / UL Type 1, 12; IP55 | |
| ME1235 | Top desk | 300 | 1200 | 750 | NEMA / UL Type 1, 12; IP55 | |
| ME164 | Top desk | 300 | 1600 | 650 | NEMA / UL Type 1, 12; IP55 | |
| ME1645 | Top desk | 300 | 1600 | 750 | NEMA / UL Type 1, 12; IP55 | |
| ME601 | Top desk | 300 | 600 | 650 | NEMA / UL Type 1, 12; IP55 | |
| ME802 | Top desk | 300 | 800 | 650 | NEMA / UL Type 1, 12; IP55 | |
| ME8025 | Top desk | 300 | 800 | 750 | NEMA / UL Type 1, 12; IP55 | |
| PE123 | Upper part | 460 | 1200 | 400 | NEMA / UL Type 1, 12; IP55 | |
| PE1235 | Upper part | 460 | 1200 | 500 | NEMA / UL Type 1, 12; IP55 | |
| PE164 | Upper part | 460 | 1600 | 400 | NEMA / UL Type 1, 12; IP55 | |
| PE1645 | Upper part | 460 | 1600 | 500 | NEMA / UL Type 1, 12; IP55 | |
| PE601 | Upper part | 460 | 600 | 400 | NEMA / UL Type 1, 12; IP55 | |
| PE802 | Upper part | 460 | 800 | 400 | NEMA / UL Type 1, 12; IP55 | |
| PE8025 | Upper part | 460 | 800 | 500 | NEMA / UL Type 1, 12; IP55 |
Contact our team of experts to discuss your project requirements and request a quote today.
