E COMP Compact Cabinets

COMPACT SOLUTION FOR FREE-STANDING AND WALL-MOUNTED APPLICATIONS

The construction concept of E COMP makes the range a perfect link between the monobloc E MOX solutions and the wall-mounted E COR enclosures.

E COMP is designed to take full advantage of all the benefits of a fully welded construction and for applications where a medium-sized free-standing enclosure is required.

The robust technical features and ergonomic design of E COMP, with its modular cable entry, make it possible to integrate and complete the configuration with ETA standard accessories.

Solution available in versions:

Single solid door + rear panel
Double solid door + rear panel

Plus & Benefits

Fully welded enclosure and compact design
Visual uniformity with E MOX monobloc solutions and E NUX modular system
Space optimisation due to compact design, allowing electrical and electronic components to be housed in small spaces without compromising accessibility or functionality.
Quick wiring: Internal mounting plate included in delivery, including nylon skid for fastening
Easy maintenance: Simple design facilitates inspection, replacement and maintenance of components, reducing downtime.
Innovative locking system: 3-point locking system with a fixed escutcheon and possibility of mounting different inserts
Certified product: Meeting industry standards and ensuring safety and reliability
Versatile design
Wide range of accessories

E COMP family

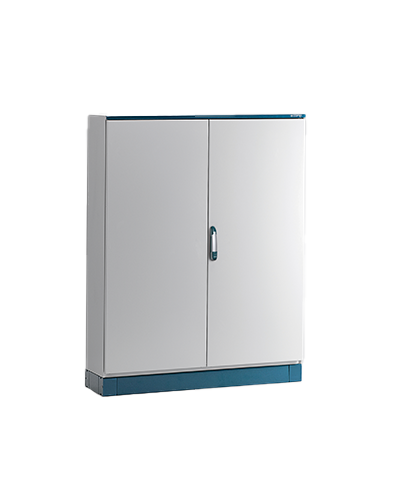

E COMP double door

E COMP single door

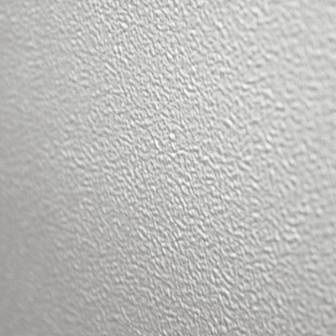

E COMP painting detail

Technical Features

E COMP cabinets are meticulously manufactured using a highly automated and specialised production process at every stage.

Material:

Enclosure: Sheet steel DC01
Door: Sheet steel with sendzimir reinforcement profiles (single door port L=800mm provided for complete reinforcement frame)
Mounting plate: Sedzimir steel sheet
Thickness: Casing 1.5mm, door: 2.0mm, floor plate: 2.5mm

Painting: Standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders

Colour:

Enclosure and door: RAL7035 textured
Appearance profile: Textured RAL5020

Sealing gasket: Two-component polyurethane foam, maintaining IP rating

Degree of protection: IP55, NEMA/UL Type 1, 12, 3R

Impact resistance rating: IK10

Supply

Enclosure with upper aesthetic profile
Door complete with 2 stiffening profiles and double flap locking system, diameter 3.0 mm
Adjustable cable entry
Front inserted mounting plate

Complementary accessories

Modular plinth
Interior door kit (frame and door)
Rain canopy
Lifting systems
Wall fastening systems
Internal profiles
Door accessories
