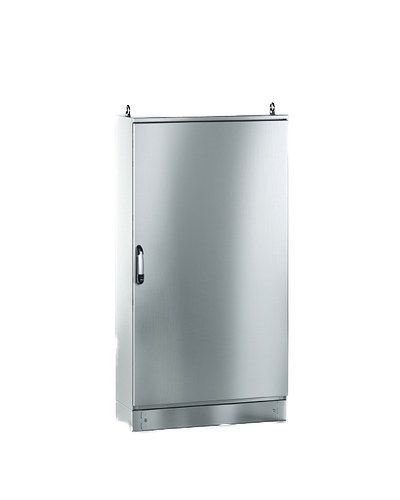

E COMP X Compact Cabinets

The construction concept of E COMP makes the range a perfect link between the E MOX monoblock solutions and the E COR wall-mounted enclosures.

E COMP X is designed to take full advantage of all the benefits of a fully welded construction and for applications where a medium-sized free-standing enclosure is required.

Available in standard AISI 304L stainless steel (AISI 316L on request).

The solid technical features and ergonomic design of E COMP X, with its modular cable entry, make it possible to integrate and complete the configuration with ETA standard accessories.

The cabinet structure is offered with the same high-performance construction concepts as the painted sheet version (E COMP), but with distinctive pluses that make it suitable for applications in harsh environments, such as:

• Oil & Gas
• Food & Beverage
• Chemical & Petrochemical
• Inshore & Offshore
• Marine Environments

Solution available in version:

• Single blank door + back panel
• Double blank door + back panel

• Fully welded enclosure and compact design
• Visual uniformity with one-piece E MOX X solutions and E NUX X modular system
• Space optimization with compact design, allowing electrical and electronic components to be housed in small spaces without compromising accessibility or functionality.
• Quick wiring: Internal mounting plate included in delivery
• Easy maintenance: Simple design facilitates inspection, replacement, and maintenance of components, reducing downtime.
• Innovative locking system: Double 3.0mm diameter fin with lever operation and silicone gasket
• Certified product: Meeting industry standards and able to guarantee safety and reliability
• Versatile design
• Protection guaranteed by silicone gasket and external protective film
• Range of accessories to complement, compatible with E MOX X

Let's find out together!

E COMP X cabinets are meticulously manufactured using a highly specialised production process at every stage.

Materials:

• Enclosure: AISI 304L stainless steel sheet (AISI 316L on request)
• Door: Pre-satined stainless steel sheet AISI 304L (AISI 316L on request)
• Mounting plate: Sedzimir steel sheet
• Thickness: Casing 1.5 mm, door 1.5 mm, base plate 2.5 mm

Sealing gasket: Two-component silicone foam, maintaining IP rating

Degree of protection: IP55, NEMA/UL Type 1, 12, 3R (4X on request)

Impact resistance degree: IK10

• Enclosure with door complete with 2 stiffening profiles and 3.0 mm diameter double flap
• Closure system
• Adjustable cable entry
• Front inserted mounting plate

• Modular plinth
• Lifting systems
• Wall fastening systems
• Internal profiles
• Door accessories
