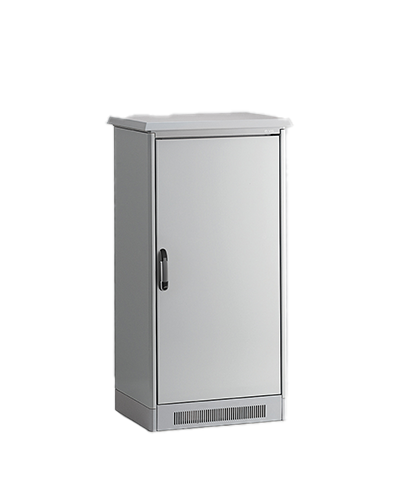

E VIS Outdoor Cabinets

ETA QUALITY, FOR OUTDOOR APPLICATIONS

Thanks to the specific construction concept, resistant materials and finishes, the E VIS outdoor enclosure range ensures perfect protection of the cabinet's internal components from:

Environmental factors
Extreme temperatures
Direct solar radiation
Harsh environments
Atmospheric, mechanical, and chemical agents
Vandalism

Solution available in two materials and versions:

Painted sheet steel or aluminium alloy
Single-wall or double-wall with covers.

Plus & Benefits

Outstanding protection in outdoor installations
Safe solutions: Compact, vandal-proof structure, inaccessible when door is closed
Robustness of the structure, thanks to high-performance materials and finishes resistant to the heaviest applications
Easy to use: The large cable entry and quick mounting from the outside of the baseboard crossbar allow for easy wiring
High functionality, guaranteed by the natural ventilation system around the enclosure: double-layered front door and ventilation openings on the roof
Sophisticated design, allowing the side covers to be assembled without screws
No visible screws: Guarantee of greater safety
Flexible solution: Possibility of creating solutions with special dimensions, insulation, different finishes or ad hoc designs
Silicone sealing gasket, offered as standard
Wide range of accessories available to complete the configuration

Tecnical Features

Material:

Structure: Aluminium alloy AlMg3 (steel plate DC01 on request)
Mounting plate: Sendzimir steel sheet
Thickness: 2.0mm

Painting: Standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.

Colour: RAL 7035 smooth

Sealing gasket: Two-component silicone foam, allowing the IP rating to be maintained

Degree of protection

Single solid door: IP56
Double solid door: IP55

Impact resistance rating: IK10

Accessories (to be ordered separately):

Front-entry plate
Modular plinth
19'' uprights
Lifting systems
Thermal management

Composition

SINGLE-WALL CABINET

Structure with removable back
Roof with ventilation slits screwed to the container
Door with 3-point locking system and lever-operated handle with key lock

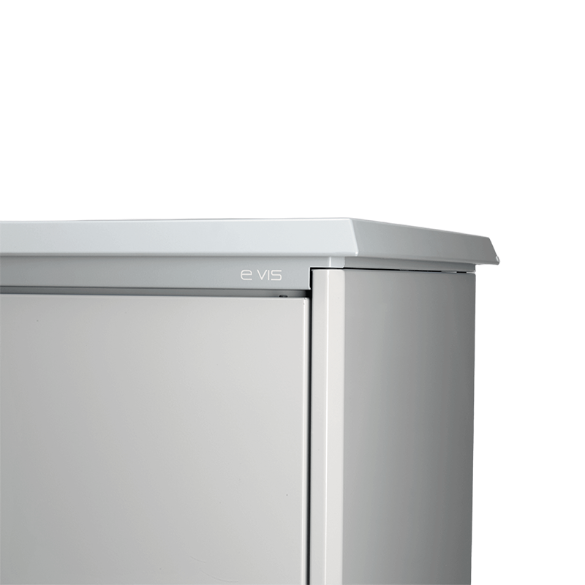

Rain canopy 40mm high, with 20mm overhang on all sides
Cable entry provided with modular elements for removable screwed cable entry

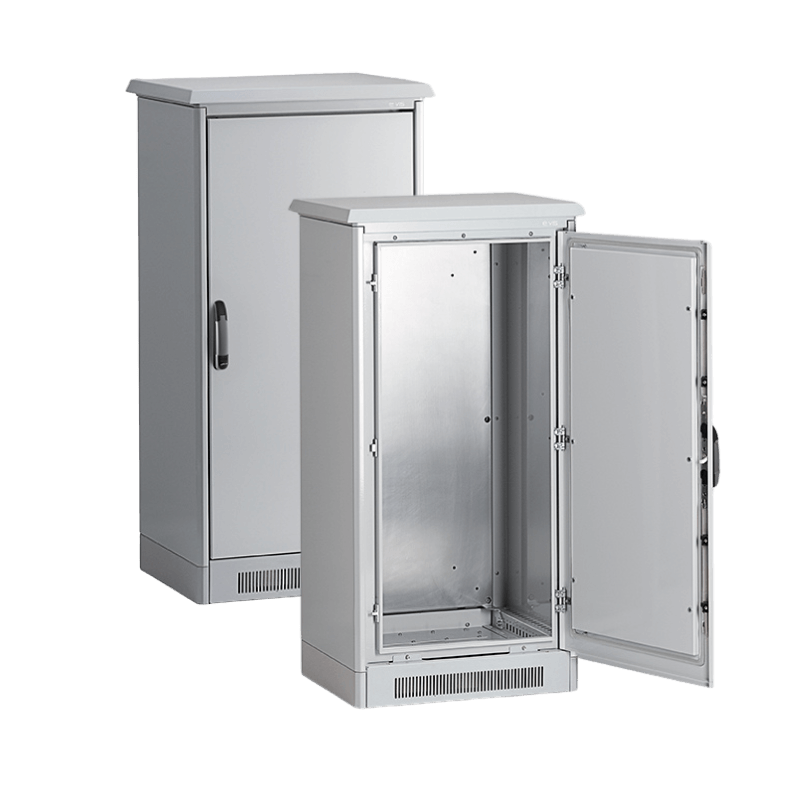

DOUBLE-WALL CABINET

Structure with a removable back, fitted with external covers
Rear cover and side covers fixed to the enclosure body
Roof with ventilation slits hinged and screwed to the front of the enclosure frame
Double-layered door with 3-point locking system and lever-operated handle with key lock
Rain canopy 40mm high, with 20mm overhang on all sides, closing the outer covers
Cable entry provided with modular elements for removable screwed cable entry
