SBA, ZBA Control desks

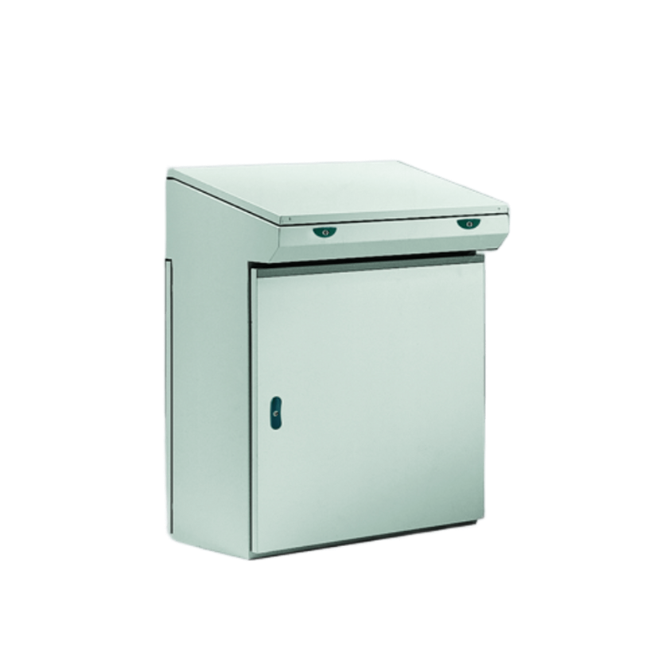

PAINTED SHEET STEELSBA Monobloc Control Desks
Technical Features
Material:
- Enclosure and doors (front and rear): Press-folded DC01 sheet steel
- Upper panel: Sheet steel
top plate: Sendzimir sheet steel - Thickness: Enclosure and door: 1.5mm, base plate: 2.5mm
Painting: Standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.
Colour: RAL7035 textured
Degree of protection: IP55, NEMA/UL Type 1, 12, 3R
Impact resistance rating: IK10
Supply
- Enclosure
- Door with lateral stiffening band and complete with 3.0 mm diameter double flap locking system
- Upper panel with profiles and gas springs to prevent accidental closure, depth adjustable p.a. plate
- Adjustable cable entry
ZBA Control desk
Technical Features
Material
- Enclosure and door: Press-folded DC01 sheet steel
- Upper panel: Sheet steel
- Profiles and base plate: Sendzimir sheet steel
- Thickness: Casing 1.5 mm, door 1.5 mm, top panel 1.5 mm, base plate 2.5 mm
Painting: Standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders.
Colour: RAL7035 textured
Degree of protection: IP55, NEMA/UL Type 1, 12, 3R
Impact resistance degree: IK10
Supply
- Enclosure
- Door with lateral stiffening band, complete with 3.0 mm diameter double flap locking system
- Upper panel complete with profiles and mechanical opening stop, with locking system
- Mounting plate fixed to the rear wall
- Adjustable cable entry
Monobloc Control Desks
Code List
Filter by:
Width (mm)
600
800
1000
1200
Height (mm)
1000
| Item # | Configuration | Height | Width | Depth | Add to Quote Cart |
|---|---|---|---|---|---|
| SBA001 | Single-bay Console | 1000 | 1000 | 500 | |
| SBA201 | Single-bay Console | 1000 | 1200 | 500 | |
| SBA601 | Single-bay Console | 1000 | 600 | 500 | |
| SBA801 | Single-bay Console | 1000 | 800 | 500 | |
| ZBA001 | Double-bay Console | 1000 | 1000 | 505 | |
| ZBA201 | Double-bay Console | 1000 | 1200 | 505 | |
| ZBA601 | Double-bay Console | 1000 | 600 | 505 | |
| ZBA801 | Double-bay Console | 1000 | 800 | 505 |
Contact our team of experts to discuss your project requirements and request a quote today.
