EC050620H

Configuration: Single blank door

ETA E CORX Unibody wall-mount enclosure, concealed hinge, double-bit 1/4-turn latch, NEMA/UL TYPE 1, 12, 4x; IP66, AISI316L stainless steel, Single Solid Door, 24 x 20 x 8\ (600 x 500 x 200mm - HxWxD)”

Height*600
Width*500
Depth*200
* Dimensions mm (nominal inches)

Material

AISI316L stainless steel

Certifications

CE-UKCA- TUV - RINA - cULus Listed - EAC - RoHS

Resources

EC050620H STEP FileECOR_X_single_door.dwgECOR_X_single_door.dxfECOR_X_single_door.pdf 3D CAD Catalog
Door typeSingle blank
Environmental ratingsNEMA/UL TYPE 1, 12, 4x; IP66
Family/SeriesECOR(X)
Manufacturer IDEC050620H
HxWxD (mm)500X600X200
HxWxD (in.)24 x 20 x 8

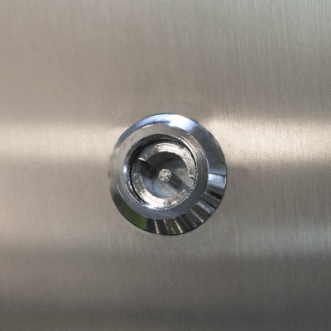

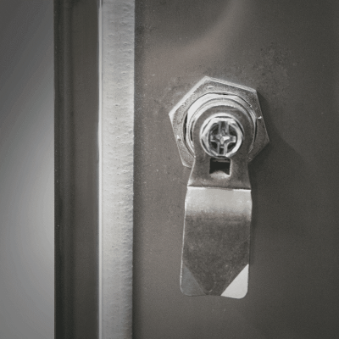

Latch typeQuarter-turn, double-bit key
# of Latches2
Product materialAISI 316L
ThicknessEnclosure: 1,2mm Door: 1,5mm Mounting plate: 2,5mm
Impact ratingIK10
ContentsEnclosure, double-bit key, mounting plate, and hardware for grounding and mounting plate
Package quantity1 pc.
PackagingETA light blue cardboard box
Weight17.8
HTS (Customs)85381000
Mounting Plate Depth mm (in.)185 (7.28)
Mounting Plate Dimensions mm (in.)550 x 450 (21.65 x 17.72)
