ABACUS EVO

The ABACUS EVO range of cabinets was born from the need to combine the requirements of the cabling and server worlds

The solution is designed for indoor applications; the main sectors are commercial buildings, smart cities, security and video surveillance, data centres and networking.

ABACUS EVO allows for infinite configurations and is fully customisable in size, composition and colour.

Front of the cabinet

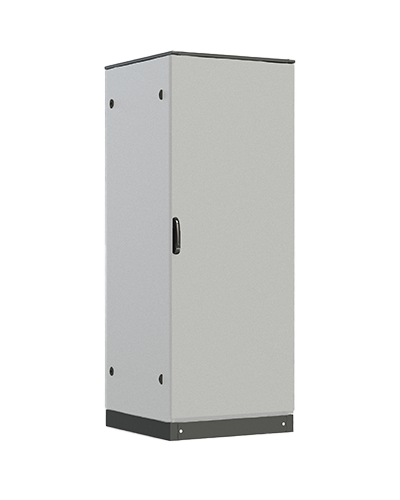

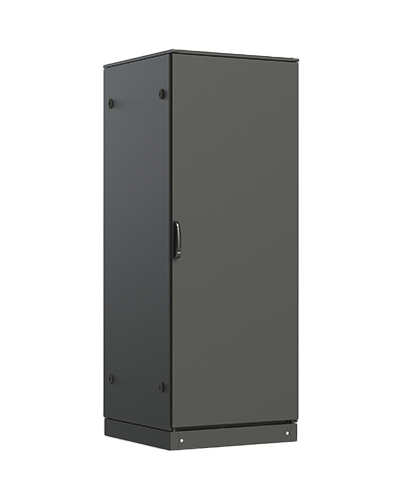

• Single blankdoor

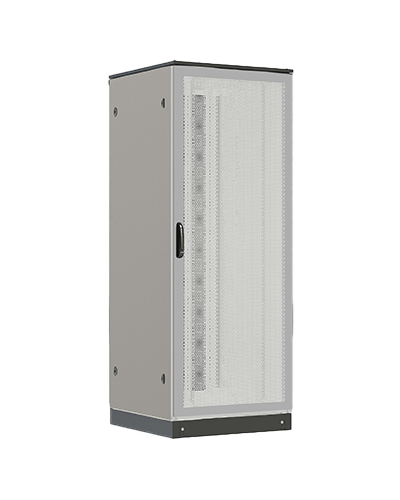

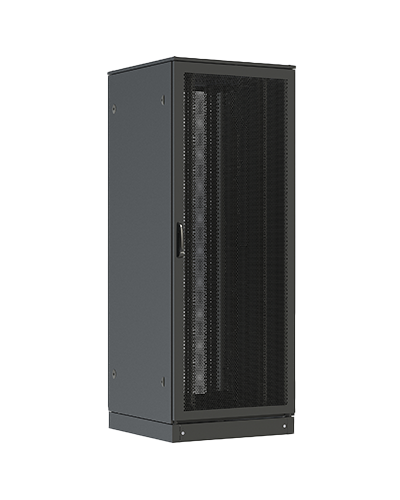

• Single ventilated door

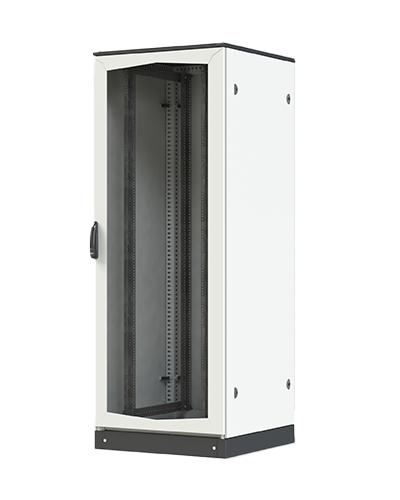

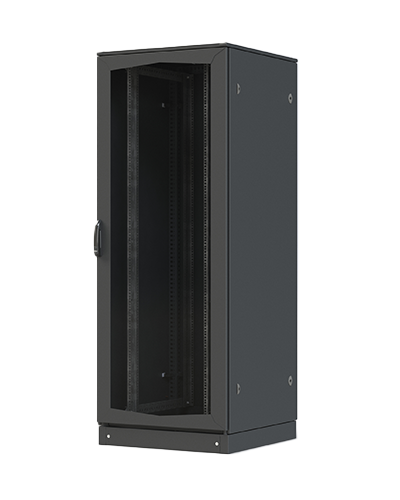

• Single door with tempered glass
• Double blank door

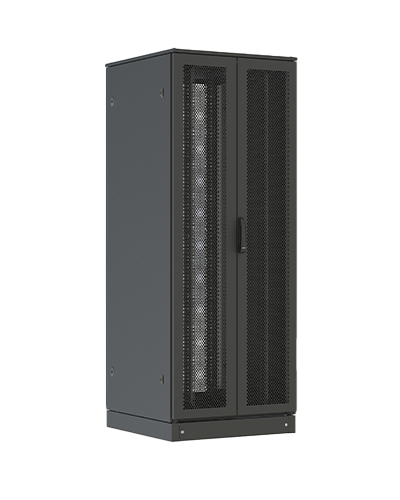

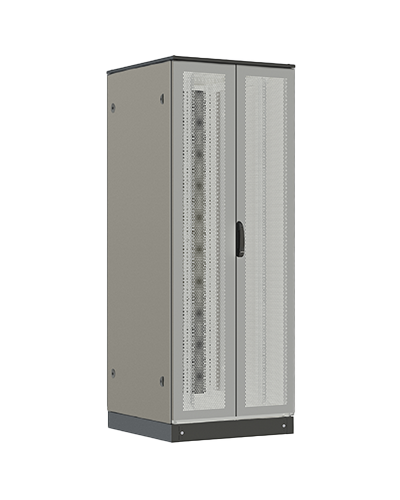

• Double ventilated door

Rear of the cabinet

• Blank panel
• Single blank door
• Single ventilated door
• Single door with tempered glass
• Double blank door
• Double ventilated door

Colour

• RAL9011 textured
• RAL7035 textured

• The first 19'' rack cabinet with infinite configurations
• Open view rack (version with glass door) to make the cabling system more usable
• Fully demountable solution
• Profile characterising uprights and roof/bottom crossbars

• Cabinets with D=600mm: Frame, front 19'' rack uprights, plinth, bottom, door and panels
• Cabinets with D=800, 1000, 1200m: Frame, front and rear 19'' rack uprights, plinth, bottom, door and panels

Browse and discover all the possibilities and choose your cabinet according to your specific project requirements.

ABACUS EVO cabinets are meticulously manufactured using a highly automated and specialised production process at every stage.

Materials:

• Structure (uprights, roof structure and bottom): HSLA high-strength steel plate
• Panels and door: sheet steel DC01
• Transparent door: tempered glass (where required)
• Thickness: structure 1.2mm, door and plinth 1.5mm, roof, pre-cut bottom, side walls 1.2mm, 19" rack uprights: 2.0mm

Painting: Standard electrostatic E DUP cycle - liquid painting by cathodic electrophoresis process with epoxy resin and finishing with thermosetting epoxy-polyester powders

Colour:

• Structure: RAL7035 smooth
• Panel and door: RAL7035 textured/ RAL9011 textured (depending on configuration)
• Roof and plinth: RAL9011 textured
• Handle: RAL9011

Static load capacity: 1000 kg

Sealing gasket: Two-component polyurethane foam, maintaining IP rating

Degree of protection: IP20, NEMA/UL Type 1

Impact resistance degree: IK10
